Performance to rule your game

DESIGNED FOR LIGHTNING-FAST GAMING, POWERED BY AMD RDNA™ 4

Experience the next level of 1440p gaming performance with AMD Radeon™ RX 9060 XT graphics cards. Powered by groundbreaking RDNA™ 4 architecture with unified compute units featuring advanced raytracing and AI accelerators, support for AMD FidelityFX™ Super Resolution 4 technology and AMD HYPR-RX for ultra-smooth, ultra-responsive gameplay that makes every play count.

Built for the gamer

SWIFT CLASS

The Swift class exemplifies a modern aerodynamic style through a clean and elegant design. It is a thoughtful design with the sole purpose of maximizing airflow to improve cooling and performance. The Swift line of graphics cards is XFX's entry-level line of graphics cards. Swift model graphics cards have good cooling performance and offer a no-frills, amazing gaming performance.

AIRFLOW AND AESTHETICS

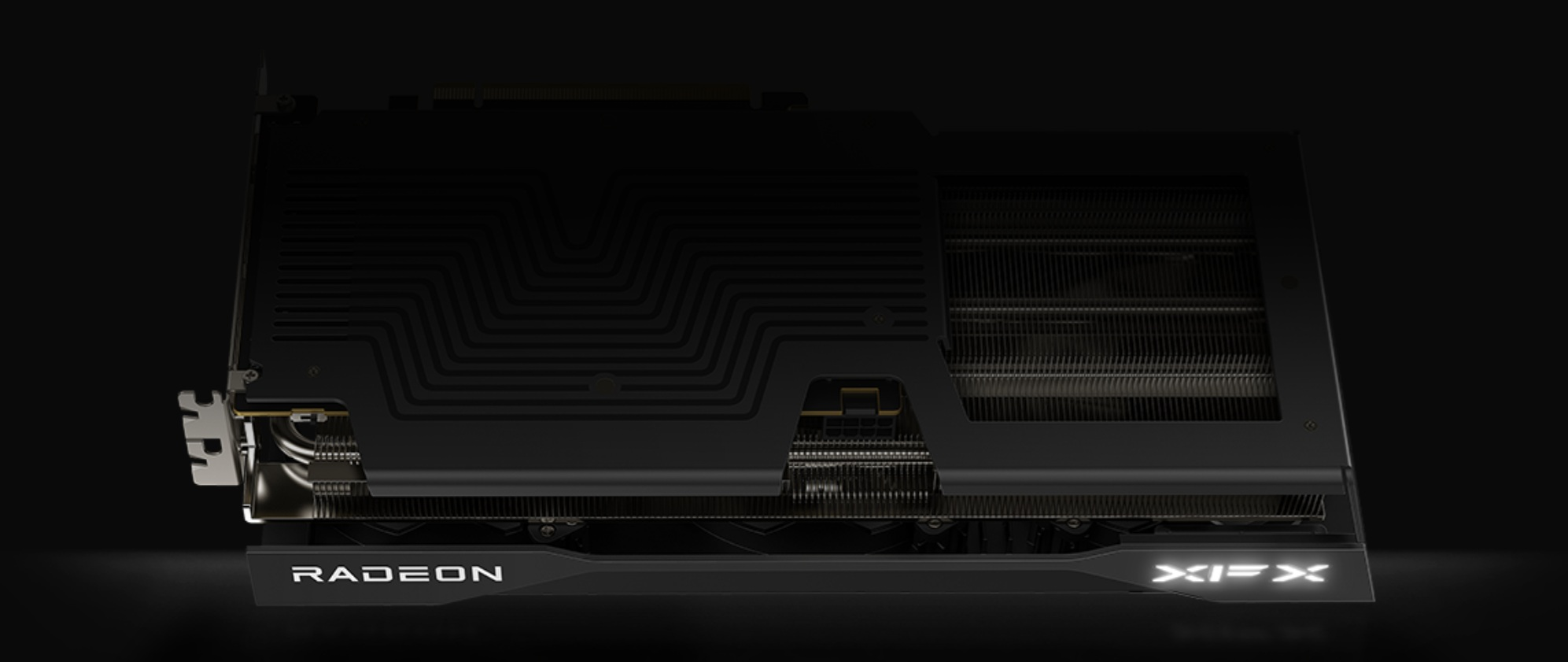

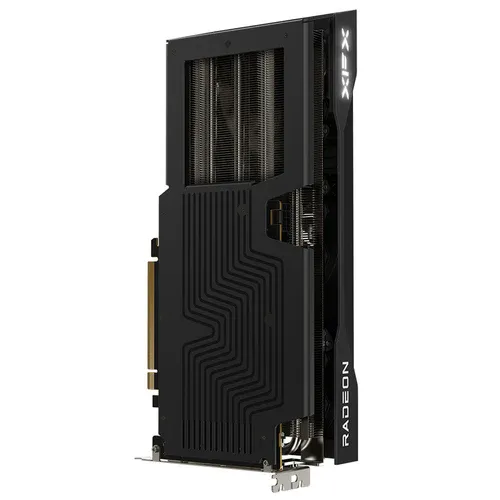

With each iteration of the XFX Swift class, we try to simplify the design while also improving thermal performance. Our nickel-plated copper cold plate, high performance fans, and 6mm heatpipes all come together to give great cooler performance and thermal dissipation.

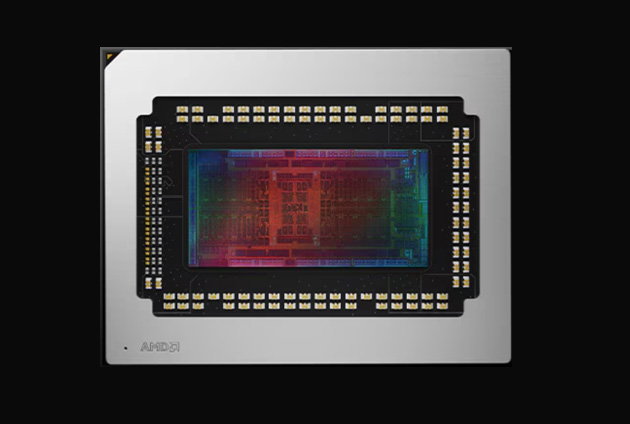

With the latest AMD RDNA™ 4 architecture, experience next-generation advancements in performance and efficiency with faster raytracing and AI acceleration.

Enjoy gaming like never before with immersive, lifelike visuals driven by next-gen raytracing, supercharged with AMD FidelityFX™ Super Resolution 4 ML-powered upscaling, and elevated streaming clarity by Enhanced Media Engine.

DESIGNED FOR LIGHTNING-FAST GAMING, POWERED BY AMD RDNA™ 4

Experience the next level of 1080p and 1440p gaming performance with AMD Radeon™ RX 9060 XT graphics cards. Powered by groundbreaking RDNA™ 4 architecture with unified compute units featuring advanced raytracing and AI accelerators, support for AMD FidelityFX™ Super Resolution 4 technology1 and AMD HYPR-RX2for ultra-smooth, ultra-responsive gameplay that makes every play count.

Future-Ready Tech

Built for longevity, AMD Radeon™ RX 9060 XT graphics cards feature up to 16GB VRAM, PCI Express® Gen 5 support, AMD Smart Access Memory™ technology, AI-enabled technologies, and seamless pairing with AMD Ryzen™ 9000 Series processors to unlock the full potential of your AM5 platform. An updated Radiance Display™ Engine featuring DisplayPort™ 2.1a and HDMI 2.1b is ready for the latest ultra-high refresh displays.

GDDR6 Memory for Advanced Gaming

Equipped with up to 16GB of advanced GDDR6 memory to provide high bandwidth for 1080p and 1440p gaming. The Radeon RX 9060 series gives amazing performance for today’s most demanding games.

PCI® Express 5.0 Support

The AMD Radeon™ RX 9070 Series graphics cards feature PCIe® 5.0, with a throughput of 32 GT/s per lane, which enables two times the bandwidth compared to PCIe® 5.0.

500 Million Gamers Play On AMD Radeon

AMD Power most of todays newest consoles but also more Gaming PCs and Consoles are powered by AMD*. It's obvious what is the real choice when it comes to high performance graphics at a great value.

AMD RADEON™ IS WINDOWS 11 READY

Windows® 11 is created for the ultimate PC gaming, featuring superior graphics, amazing speed, and an incredible selection of games. Windows 11 includes gaming features like DirectX® 12

SUPPORTCan't find what you're looking for? Check out common questions, answers and guides at our XFX Knowledgebase |

Specifications:

Manufacturer | XFX
Model Number | RX-96TS316B7
Product Name | AMD Radeon™ RX 9060 XT

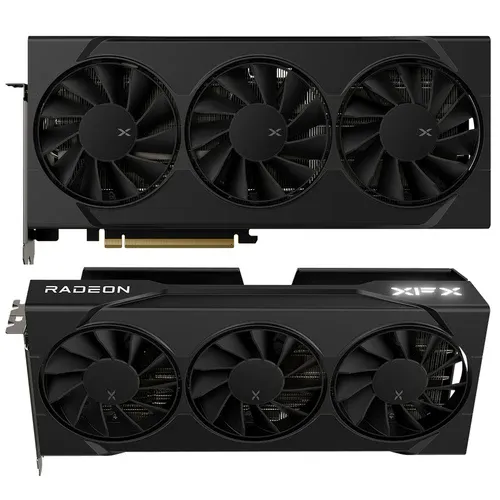

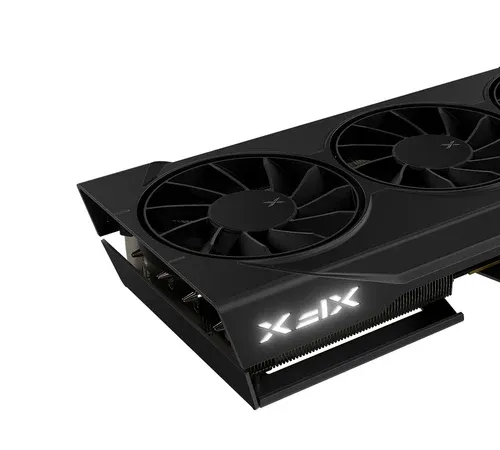

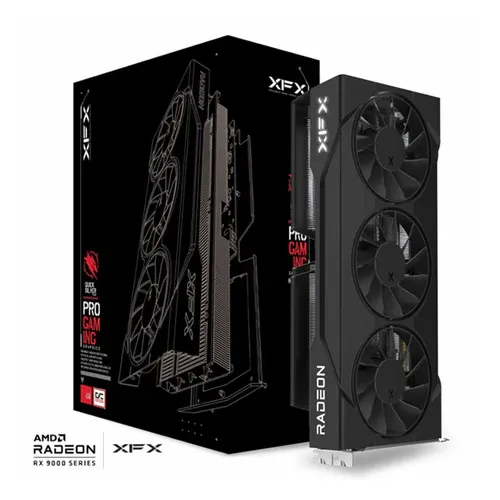

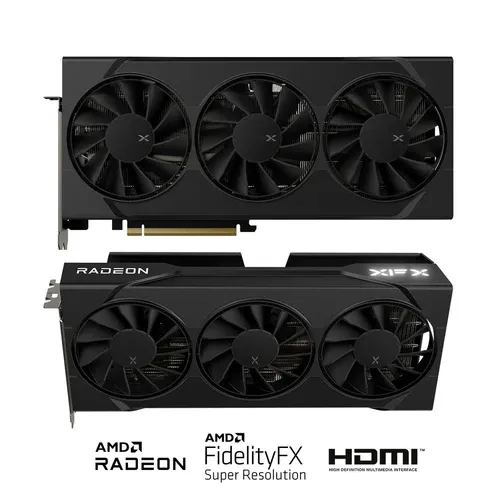

Short Description | XFX Swift AMD Radeon RX 9060 XT OC Triple Fan Gaming Edition 16GB
UPC | 840191503412
Bus Type | PCI-E 5.0
Base Clock | Up to 1900 MHz
Game Clock | Up to 2780 MHz
Boost Clock | Up to 3320 MHz
Stream Processors | 2048
Compute Units | 32
Memory Type | GDDR6
Memory Size | 16GB
Memory Bus | 128-bit
Memory Clock | 20 Gbps
Memory Bandwidth | Up to 340 GB/s
Card Profile | Dual Slot
Cooling | Triple Fan
Display Outputs | 2x DisplayPort 2.1, 1x HDMI 2.1
Power Connector | 1x PCI-E 8-pin
Minimum PSU | 450W
Technologies | AMD RDNA™ 4 Compute Units w/ RT+AI Accelerators
AMD Infinity Cache™
AMD Radiance Display™ Engine
AMD Radeon™ Boost, Anti-Lag, Super Resolution
AMD FidelityFX™, FSR, Smart Technologies
Microsoft® DirectX® 12 Ultimate, DirectStorage
Vulkan® Optimized, AMD Link, FreeSync™
AMD Noise Suppression, Privacy View
Video Features | HDMI™ 4K Support
4K H264/H265 Decode & Encode
AV1 Decode & Encode
RoHS Certified | Yes
Included in Box | Quick Installation Guide
Card Dimensions (cm) | 29 x 12.4 x 4.9
Card Dimensions (inch) | 11.42 x 4.88 x 1.93
Package Dimensions (cm) | 38.9 x 21.8 x 12.5
Package Dimensions (inch) | 15.31 x 8.58 x 4.92
Package Weight | 1.74 kg / 3.84 lb (est)
Carton Qty | 8 Units per Master Carton
Master Carton Dimensions (cm) | 51.5 x 44.3 x 40.5
Master Carton Weight | 15.57 kg / 34.33 lb (est)
